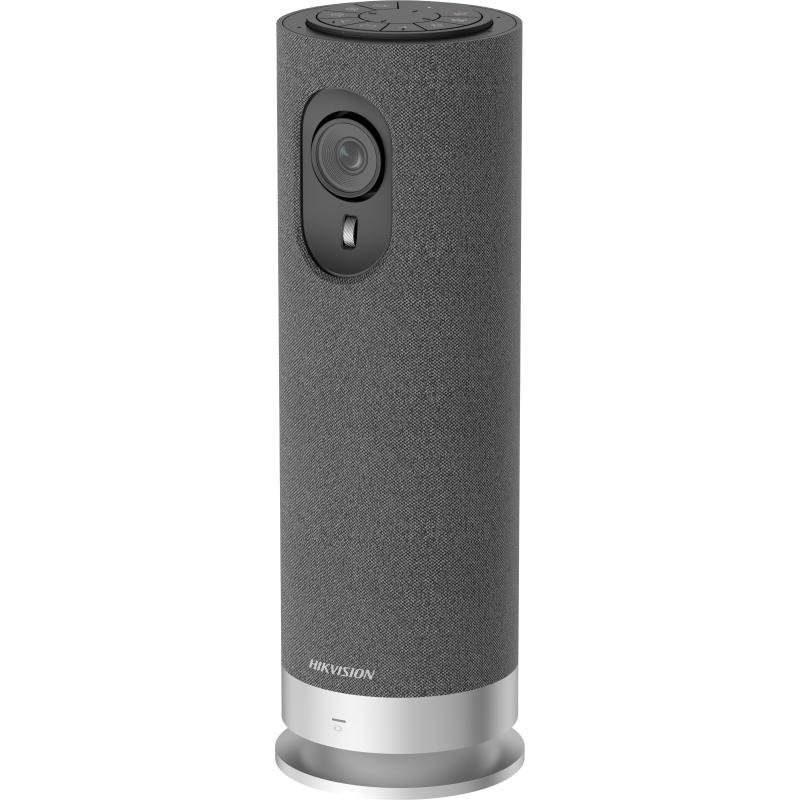

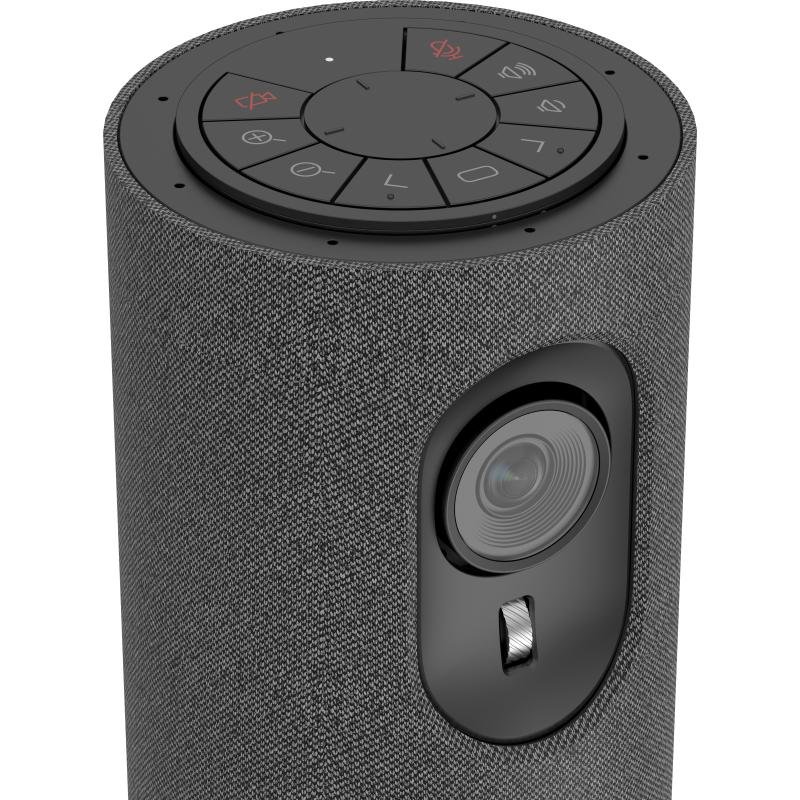

DS-UVC-X12

Portable Conference Camera

  • 2 MP (WDR) CMOS
  • High quality imaging with 1920 × 1080 resolution
  • Min. illumination: 0.1 Lux @ (F2.2, AGC ON)
  • Clear imaging against strong backlight due to 120 dB true WDR technology
  • AGC for self-adaptive brightness
  • Low distortion lens for reducing image distortion
  • Built-in 4-mic array microphones with clear sound
  • Built-in a full-range, high definition speakers
  • USB Type C interface, supporting USB 3.0 interface. Plug-and-play, no need to install driver software
  • Built-in 2450 mAh lithium battery
  • Compatible with leading online communication softwares
  • Camera
    Image Sensor 1/2.7″ 2 MP CMOS
    Max. Resolution 1920 (H)×1080 (V)
    Min. Illumination 0.1 Lux @ (F2.2, AGC ON)
    Shutter Time PAL: 1/25 s to 1/50,000 s,NTSC: 1/30 s to 1/50,000 s
    Angle Adjustment Tilt: -10° to 10°
    Zoom 2 ×
    Lens
    Lens Type 2.8 mm fixed focal lens
    Focal Length & FOV horizontal FOV 110°, vertical FOV 75°, diagonal FOV 120°
    Object Distance Range 0.3 m to ∞
    Microphone
    Amount 4
    Polar Pattern 360° Omni-directional
    Pickup Distance In a radius of up to 5 m
    Sensitivity -38 dBV/Pa
    SNR 66 dB(A)
    Frequency Response 100 Hz to 8 kHz
    Type MEMS
    3A Algorithm AEC, ANS, AGC
    Sampling Rate 16 kHz
    Speaker
    Rated Power 5 W
    Speaker Range In the radius up to 8 m
    Total Harmonic Distortion (THD) <3%@1 kHz
    Maximum Output Loudness 87 dBSPL@1 m, 1 kHz
    Effective Bandwidth (-10 dB) 170 Hz to 20 kHz
    Functions
    Image Function Auto/Manual/Fixed White Balance, Backlight Compensation, Left/Right Flip / Up/Down Flip/Center Mirror
    Audio Function Supports smart noise reduction, echo suppression, anti-reverberation, squeal suppression to enhance speech quality and offer audio in high quality
    LED Indicator
