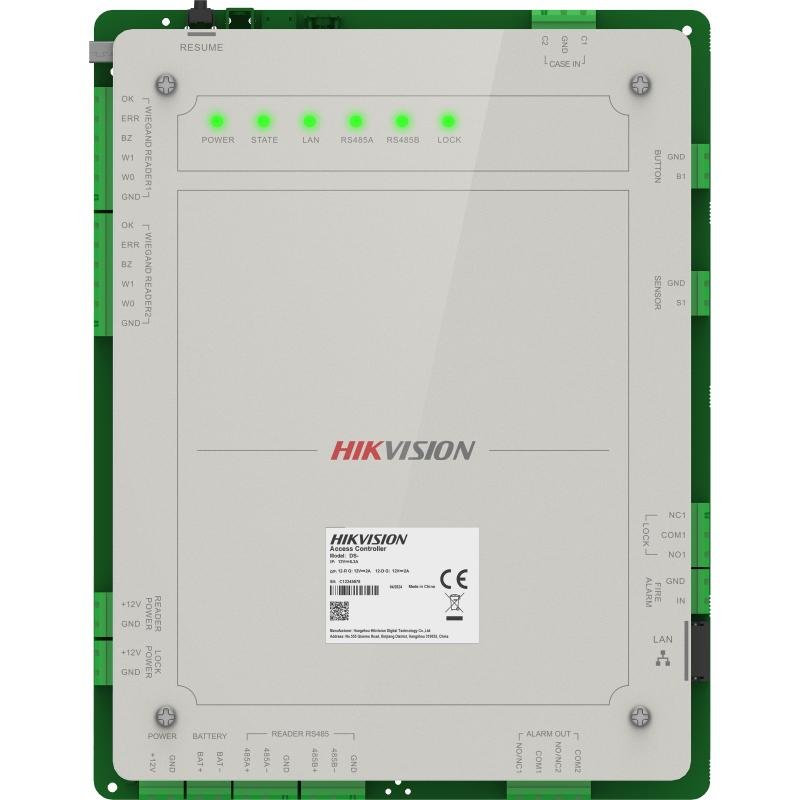

DS-K2621X
Pro Series Access Contoller
| Network | |
| Wired network | 10/100 Mbps self adaptive |
| Interface | |
| Network interface | 1 |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Alarm input | 2 |
| Alarm output | 2 |
| TAMPER | 1 |
| RS-485 | 2 for card reader (1 for communication, 1 for redundancy; each interface can connect up to 2 readers) |
| Wiegand | 2, standard 26/34 input, supports custom Wiegand settings |
| Fire interface | Support |
| Capacity | |
| Linked door capacity | 1 |
| Linked card reader capaciry | 2 RS-485 card readers (OSDP protocol) and 2 Wiegand card readers |
| General | |
| Battery | Charge and discharge |
| Power supply | 100 VAC to 240 VAC |
| Power consumption | ≤ 42 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 ° F) |
| Working humidity | 0% to 90% (No condensing) |
| Installation | Wall mounting |
| Language | English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian, and Turkish |
| Function | |
| Configuration via Web browser | Support |
| Multi-factor authentication | Support |
| Anti-passback | Support |
| Multi-door interlocking | Support |
