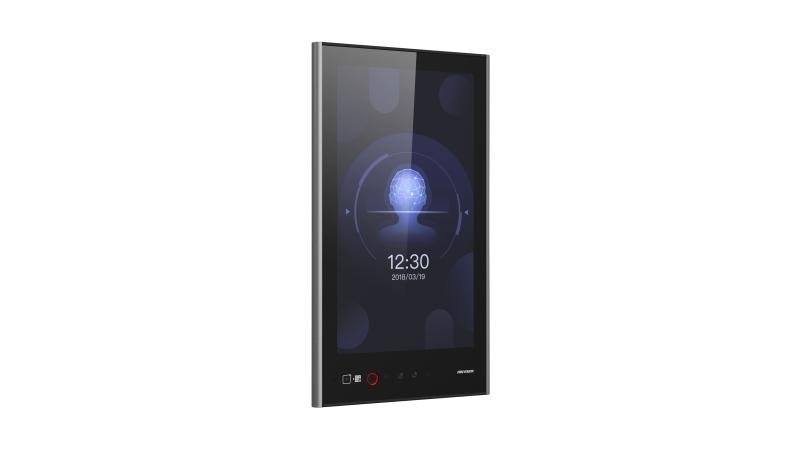

DS-K1T690M-T
Ultra Face Recognition Terminals
| Temperature measurement | |
| Temperature range | 30 °C to 45 °C (86 °F to 113 °F) |
| Sensor | Vanadium Oxide uncooled sensor |
| Resolution | 90 × 120 |
| Frame rate | 25 fps |
| Measurement accuracy | 0.1 °C |
| Measurement deviation | ± 0.5 °C |
| Measuring distance | 0.3 to 3 m |
| Display | |
| Screen size | 15.6 inch |
| Operation method | Capacitive touch screen, gesture recognition is available |
| Type | IPS |
| Video | |
| Lens | 2 |
| Resolution | 2 MP |
| FOV | HFOV = 88°; VFOV = 44°; DFOV = 108° |
| Audio | |
| Audio quality | Noise suppression and echo cancellation |
| Network | |
| Wired network | Support |
| Interface | |
| Network interface | 2 RJ-45, 10/100/1000 M self-adaptive |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Alarm input | 2 |
| Alarm output | 1 |
| TAMPER | 1 |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION) |
| Wiegand | 1 Wiegand(Hik 26bit,Hik 34bit) |
| USB | 1 |
| Authentication | |
| Card type | M1 card |
| Card reading frequency | 13.56 MHz |
| General | |
| Power supply | 12 VDC to 24 VDC, 4 A |
| Working temperature |
