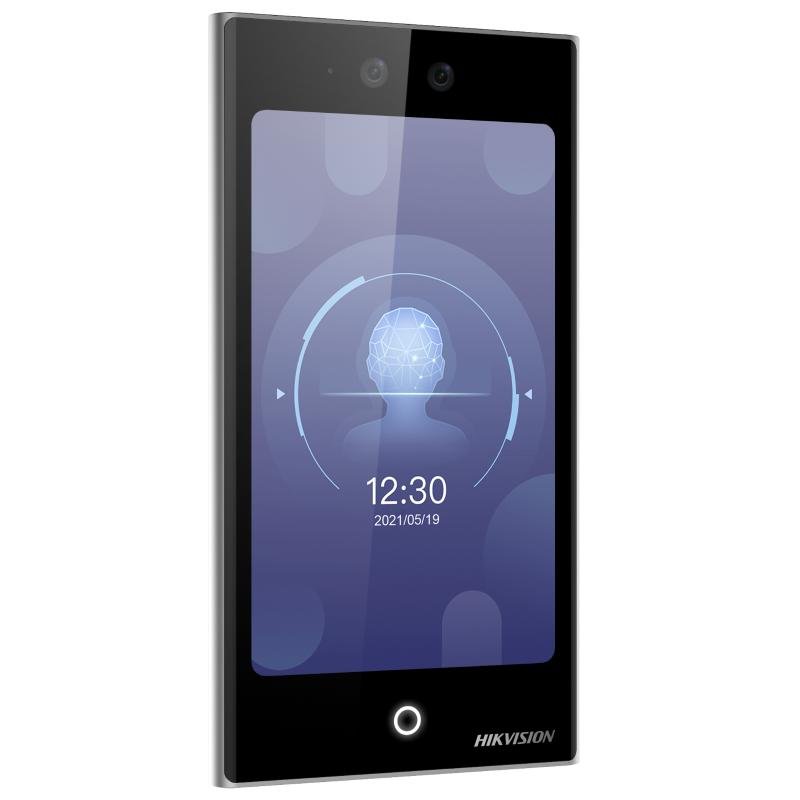

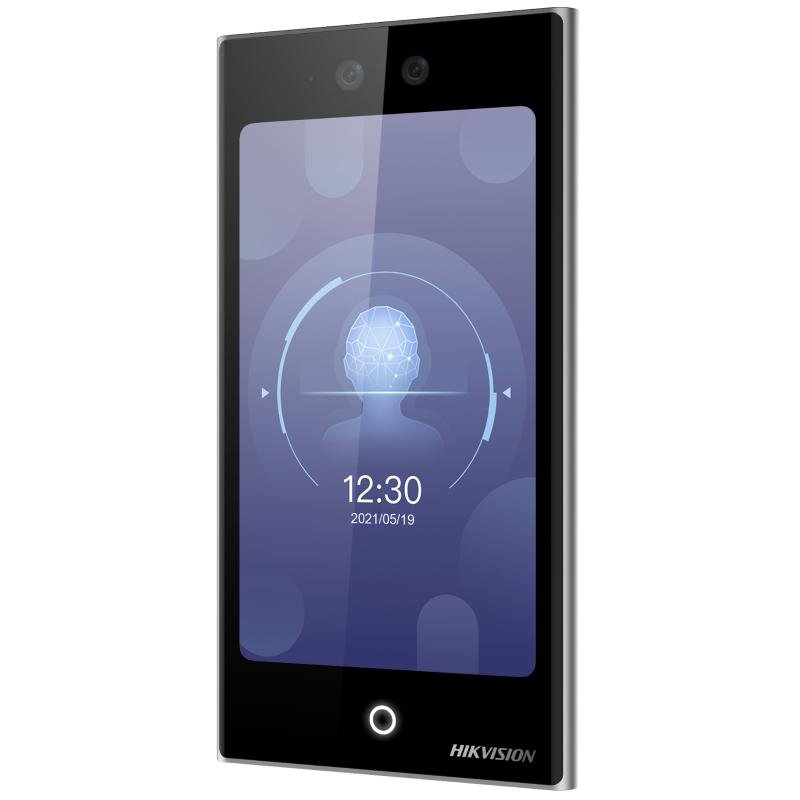

DS-K1T673TDWX

Ultra Series Face Access Terminal

  • 7-inch LCD touch screen,2 Mega pixel wide-angle lens
  • Recognition distance: 0.3 to 3 m
  • Face recognition duration < 0.2 s/User
  • Face recognition accuracy rate ≥ 99%
  • Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
  • Face mask detection
  • 100,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 500,000 card capacity, and 150,000 event capacity
  • Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
  • Supports single person and multiple people (Up to 5 people) recognition
  • System
    Operation system Linux
    Display
    Size 7-inch
    Type Touch screen
    Video
    FOV HFOV= 75.5°; VFOV= 41.5°; DFOV= 87°
    Pixel 2 MP
    Lens Dual-lens
    Video standard PAL (Default)/NTSC
    Network
    Wi-Fi Support, 2.4 G, 802.11b/g/n
    Wired network Support 10/100/1000 Mbps self-adaptive
    Interface
    Alarm input 2
    Alarm output 1
    USB 1 (For Module)
    Audio Output Interface 1 (3.5 mm)
    Network interface 1
    RS-485 1
    Wiegand 1
    Lock output 1
    Exit button 1
    Door contact input 1
    TAMPER 1
    Capacity
    Card capacity 500,000
    Face capacity 100,000
    Event capacity 150,000
    Authentication
    Face recognition accuracy rate ≥ 99%
    Card type M1 card;DESfire card;Felica card
    Card reading distance 0 to 3 cm
    Card reading duration < 1 s
    Face recognition duration < 0.2 s per person
    Face recognition distance 0.3 to 3 m
    General
    Power supply 12 VDC to 24 VDC/2 A
    Working temperature -30 °C to 60 °C (-22 °F to 140 °F)
    Working humidity 0 to 90% (no condensing)
    Protective level IP65
    Dimensions 110.5 mm × 209.2 mm × 24 mm (4.35″ × 8.24″ × 0.94″)
    Language English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean
    Weight
