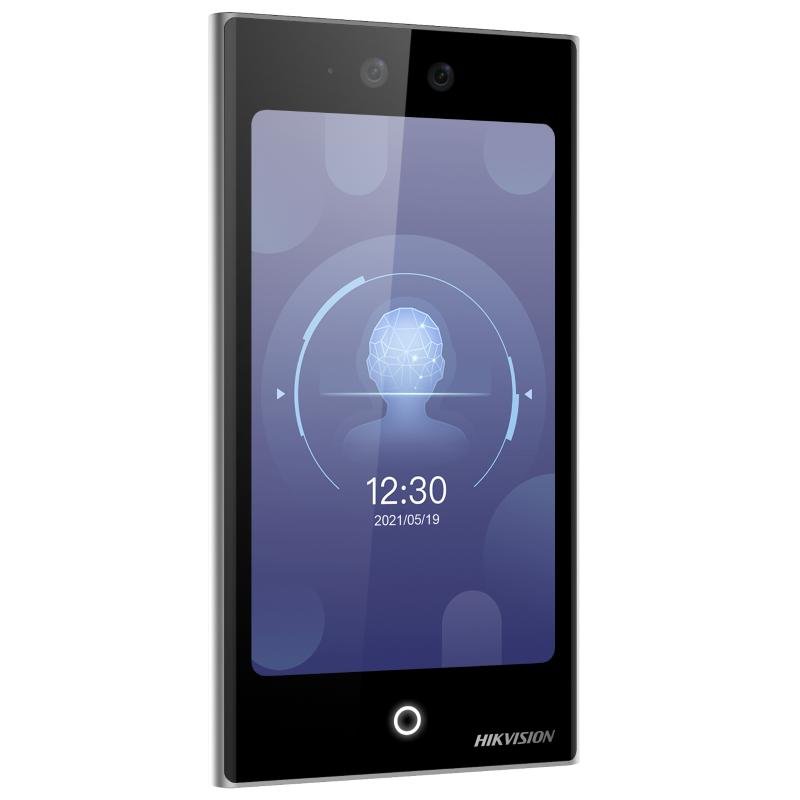

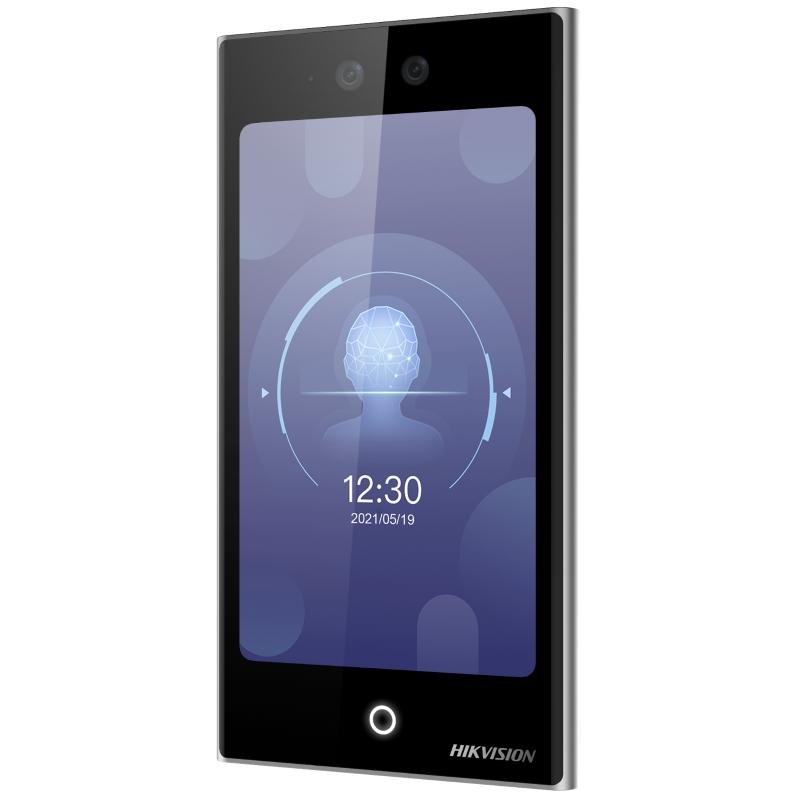

DS-K1T673DX

Pro Face Access Terminal

  • 7-inch LCD touch screen,2 Mega pixel wide-angle lens
  • Recognition distance: 0.3 to 3 m
  • Face recognition duration < 0.2 s/User
  • Face recognition accuracy rate ≥ 99%
  • Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
  • Face mask detection
  • 10,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 50,000 card capacity, and 150,000 event capacity
  • Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
  • Supports single person and multiple people (Up to 5 people) recognition
  • Display
    Screen size 7 inch
    Operation method Capacitive touch screen
    Type IPS
    Resolution 600 × 1024
    Video
    Lens 2
    Resolution 2 MP
    FOV HFOV= 75.5°; VFOV= 41.5°; DFOV= 87°
    Audio
    Audio quality Built-in omnidirectional microphone
    Network
    Wired network Support
    Interface
    Network interface 1 RJ-45, 10/100/1000 M self-adaptive
    Lock control 1
    Exit button 1
    Door contact input 1
    Alarm input 2
    Alarm output 1
    TAMPER 1
    RS-485 1 RS-485 (Half duplex, HIKVISION)
    Wiegand 1 Wiegand(Hik 26bit,Hik 34bit)
    USB 1 (For Module)
    Audio output interface 1 (3.5 mm)
    Authentication
    Card type M1 card;DESfire card;Felica card
    General
    Power supply 12 VDC to 24 VDC, 2 A
    Working temperature -30 °C to 60 °C (-22 °F to 140 °F)
    Working humidity 0 to 90% (no condensing)
    Protective level IP 65
    Dimensions 110.5 mm × 209.2 mm × 24 mm (4.35″ × 8.24″ × 0.94″)
    Weight
