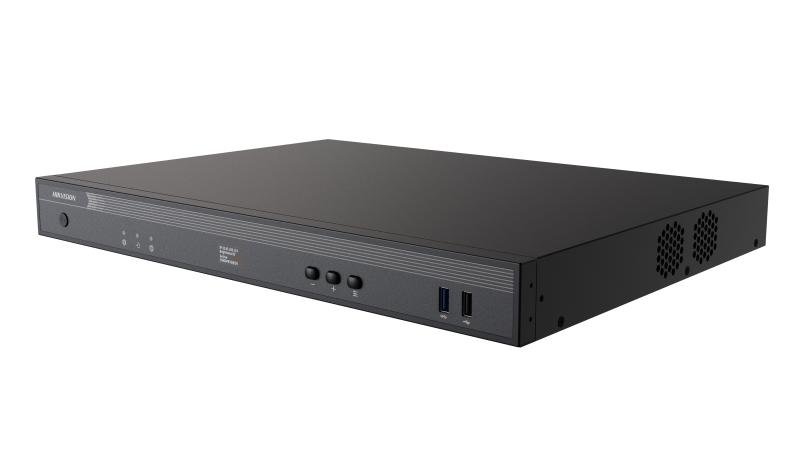

DS-DT60P-02HDI20NO/U
DS-DT60P-02HDI20NO/U - Image 2
DS-DT60P-02HDI20NO/U - Image 3

DS-DT60P-02HDI20NO/U

20 Ports 3-in-1 LED Controller

  • Provides a full-color OLED non-touch screen with the resolution of 128 × 64. Thus, you can view device status at any time and the device maintenance become easier.
  • Adopts the 1 U rackmount chassis and industrial grade chassis system.
  • Provides buttons on the front panel to change brightness and other parameters.
  • Provides indicators on the front panel to indicate the power status, signal access status, and running status.
  • Supports 2 channels of video signal input. The DVI resolution is 1920 × 1200@60 Hz. The HDMI 2.0 resolution is 4096 × 2160@60 Hz.
  • Supports frame rate self-adaption ranging from 25 Hz to 60 Hz for image collection.
  • Supports 20 channels of loading output with the maximum loading capacity of 13 MP. The maximum width is 32760 pixels and maximum height is 8192 pixels for a single device and the maximum loading capacity of each network port is 0.65 MP.
  • Supports the RGB and YUV 444 image loading output without image quality loss.
  • Supports input of mixed HDMI audio and video stream, and 3.5 mm audio output.
  • Supports full-screen zoom and custom zoom for video signal input, custom changing, and custom splicing.
  • Supports opening the signal source windows on the display and roaming window.
  • Supports the video wall configuration and window visualization.
  • Supports 1 channel of subtitle. You can set the color, font, and scrolling speed for the subtitle and add the picture.
  • Supports cascading management and unified control of multiple LED controllers through the network.
  • Supports high-bandwidth digital content protection technology of HDCP 2.2 protocol.
  • Supports custom EDID settings.
  • Supports dual backup of the power supplies and dual backup of LED controller network ports.
  • Supports custom cable alignment without rectangular frame limit.
  • Supports the operation through the client or the LED controller web page.
  • Supports configuring the background.
  • Supports configuring the startup logo.
  • Supports configuring the screen dehumidification.
  • Supports using the remote control to control the screen to display the remote UI menu.
  • Supporting adjusting the brightness, contrast, hue, and other parameters of the output image.
  • Supports pixel-level screen correction to effectively eliminate color difference and improve the quality of the display
  • Supports changing the display mode, including general, text, advertisement, video, cinema, security, and etc.
  • Supports selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.
  • Supports eye protection mode to protect the vision of the viewer.
  • Supports high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.
  • Supports viewing the loading relationship between the device and LED screen.
  • Supports viewing abnormal screen positioning during running.
  • Supports checking parameters such as device running status, device memory, CPU usage, device running temperature, and network port usage.
  • Supports abnormal screen voltage detection, screen temperature detection, and device temperature detection
  • Supports connecting to the central control device and IoT device through RS-485 port.
  • Supports docking device command and managing device by using the control network port and the protocols such as OTAP.
  • Supports using the control network port to connect to the multi-functional card to realize environment temperature detection, environment humidity detection, and the cooperation between the human body temperature monitoring and screen control.
  • Supports up to 10 scenes. Thus, the saved scene can be used directly in the future.
  • Supports displaying 7 windows (3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window) and customizing the window layout for all windows except for the background window.
  • Provides built-in Android 12 system, 4 GB memory and 32 GB storage and supports multi-media playing.
  • Supports HDMI 2.0 and DVI loop output. The maximum HDMI loop output is 4096 × 2160@60 Hz and the maximum DVI loop output is 1920 × 1200@60 Hz.
    • Shop Now

    Processing Performance
    Brightness Control 1 to 100 tunable (level-by-level white balance)
    Frame Frequency 25 Hz to 60 Hz
    Grey Level 256
    Display Color 16 MP
    Processing Depth 8 bit
    Image Scaling Supported
    Product Model
    Product Model DS-DT60P-02HDI20NO/U
    Chassis
    Chassis Height 1 U
    Chassis Width 440 mm (17.32 inch)
    Product Type
    Product Type LED controller
    LED Controller Power
    Average Consumption ≤45 W
    Power Interface Quantity 1
    Power Interface 100 to 240 VAC, 50/60 Hz
    Video Wall
    Open Windows 3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window
    Layers per Device 7
    Scenes 10
    Background Images 1
    Background Resolution Min.: 640 × 480, Max.: 1920 × 1200
    Background Format JPG/JPEG
    Subtitles 1
    Subtitle Width 32760
    Subtitle Font Supports Xiaomi font and custom font
    General
    Working Temperature -10°C to 50°C
    Storage Humidity 10% to 90%
    Working Humidity 10% to 90%
    Storage Temperature -10°C to 50°C
    Packaging Size (W × H × D) 589 mm × 103 mm × 410 mm (23.19 inch × 4.06 inch × 16.14 inch)
    Net Weight 3.35 kg (7.39 lb.)
    Gross Weight 4.47 kg (9.85 lb.)
    Dimensions (W × H × D) 440 mm × 44.5 mm × 320.8 mm (17.32 inch × 1.75 inch × 12.63 inch)
    Packing List 1 × AC power cord, 1 × mounting bracket, 2 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 3 × bar antenna, 1 × RF remote control
    Audio Input
    Audio Input Interfaces 2
    Audio Input Interface Type 1 HDMI 2.0 + 1 embedded Android
    Video Input
    Video Input Interfaces 3
    Video Input Interface Type 1 HDMI2.0 + 1 DVI + 1 channel of embedded Android
    Max. Video Input Resolution HDMI2.0: 4K; DVI: 1080p
    Video Input Resolution
