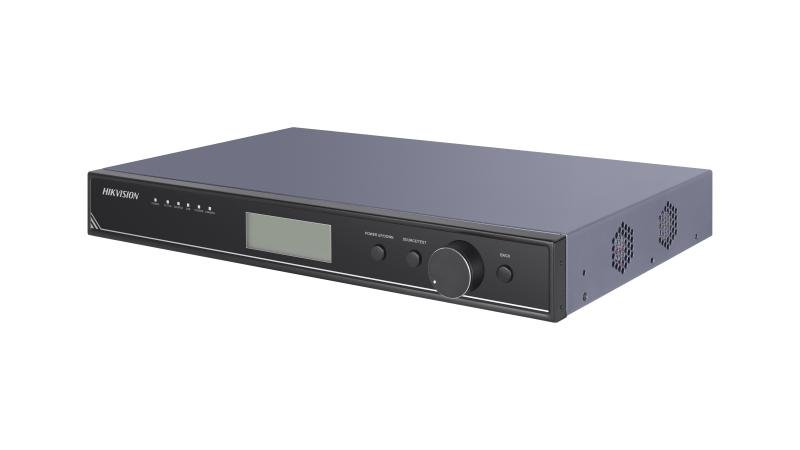

DS-D42C20-H

LED Control Card

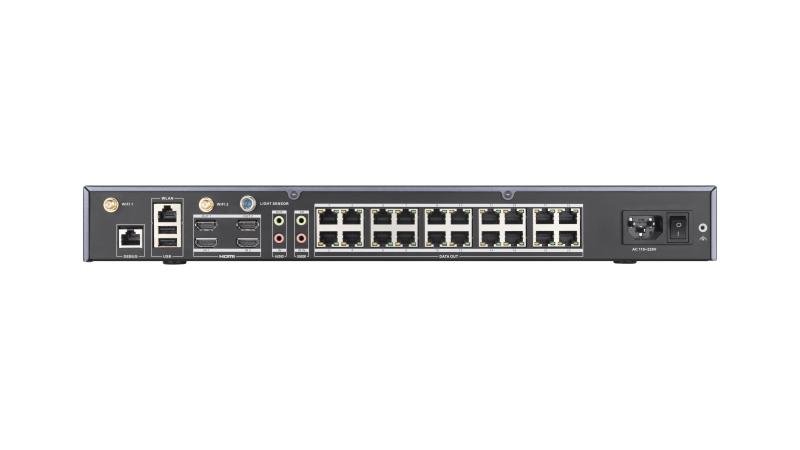

  • 20-ch gigabit Ethernet output ports, up to 4096 × 2160@60 Hz signal source access. 1-ch HDMI 2.0 output, and 1-ch HDMI 1.4 live view output.
  • 2-ch HDMI 2.0 input interfaces: Supports 4096 × 2160@60 Hz, up to 7680 × 1080@60 Hz.
  • Automatic signal source search: Enables automatic signal source search by default.
  • 3D synchronized signal input and output interface: The sending card can process 3D signals, and the single card supports 3840 × 1080p@120 Hz input and output.
  • Audio device access: The sending card, with audio input and output interfaces, supports audio device access.
  • Light sensor expansion: The sending card has a light sensor expansion interface, and the light sensor adjustment function can be enabled without adding a multi-functional card.
  • Dual-mode remote control expansion interfaces: Equipped with infrared and USB RF Wi-Fi expansion interfaces. The dual-mode supports remote control.
  • Large load capability: 10 MP.
  • Cloud upgrade: The system program supports remote upgrade on cloud.
  • Supports remote control, with the screen displaying remote control UI menu.
  • Scene management: You can customize and switch scenes out of various options.
  • Multi-controller auto splicing and cascade display for synchronization.
  • High refresh rate of 3840 Hz, nanosecond response time, and smooth video images.
  • Processing Performance
    Brightness Control 1-100 Levels
    Frame Frequency 25HZ-120HZ
    Grey Level 1024
    Display Color 1 Billion
    Processing Depth 10bit
    Image Scaling Support
    Product Model
    Product Model DS-D42C20-H
    Chassis
    Chassis Height 1.5 U
    Chassis Width Full Width
    Product Type
    Product Type LED Controller
    LED Controller Power
    Average Consumption ≤38W
    Number of power interfaces 1
    Power interface specifications 100~240 VAC, 50/60 Hz
    General
    Working Temperature 0°C ~ 50°C
    Storage Humidity 10% ~ 90%
    Working Humidity 10% ~ 90%
    Storage Temperature -10°C ~ 50°C
    Packaging Size (W × H × D) 576mm × 428 mm × 121 mm
    Net Weight 2.4KG
    Gross Weight 4.13KG
    Dimensions (W × H × D) 442 mm × 249.5 mm × 53mm
    Packing List AC power cord*1, 1U chassis accessory kit*1, Manual*1, Foot pad assembly*1
    Audio Input
    Audio Input Interface(s) 3
    Audio Input Interface Type 2 HDMI inline + 1 line-in
    Video Input
    Video Input Interface(s) 2
    Video Input Interface Type 2 HDMI2.0 (optional)
    Max. Input Resolution 4K
    Video Input Resolution
