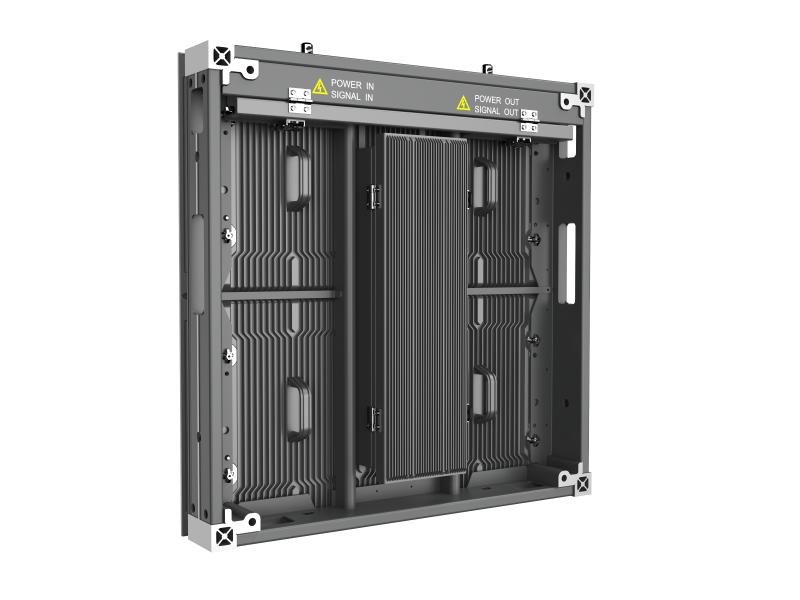

| Cabinet |
| Pixel Configuration |
SMD Triad LED |
| Pixel Pitch Category |
P3.9 |
| Pixel Pitch |
3.91 mm |
| Modules Component |
Aluminium Shell |
| Dimensions (W × H × D) |
500 mm × 500 mm × 96.7 mm |
| Resolution |
128 × 128 |
| Area |
0.25 |
| Weight |
36kg/㎡ |
| Pixel Density |
65536 dots/m² |
| Cabinet Material |
Aluminium Profile |
| Maintenance Method |
Front/Back Maitence |
| Protection Level |
IP67(F)/IP66(R) |
| Display |
| White Balance Brightness |
6000 cd/㎡（7500 cd/㎡ customizable） |
| Color Temperature |
3000K-10000K |
| Viewing Angle |
160°(H)/120°(V) |
| Contrast Ratio |
12500:1 |
| Color Uniformity |
≤ ± 0.003Cx， Cy |
| Brightness Uniformity |
≧97% |
| Processing Performance |
| Driving Method |
Constant Current |
| Frame Frequency |
50/60HZ |
| Refresh Rate |
3840 Hz |
| Grey Level |
14bit |
| Power |
| Max. Consumption |
≤ 650 W/㎡ |
| Average Consumption |
＜ 210 W/㎡ |
| Working Environment |
| Working Temperature |
-30℃~+65℃ |
| Working Humidity |
10% to 95% RH (without condensation) |
| Storage Humidity |
10% to 95% RH (without condensation) |
| Storage Temperature |
-35℃~+65℃ |
| General |
| Lifespan |
100000 Hours |
| Power Supply |
110~220 VAC ± 15% |
